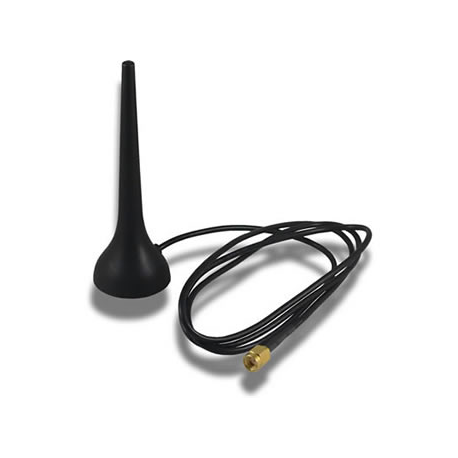

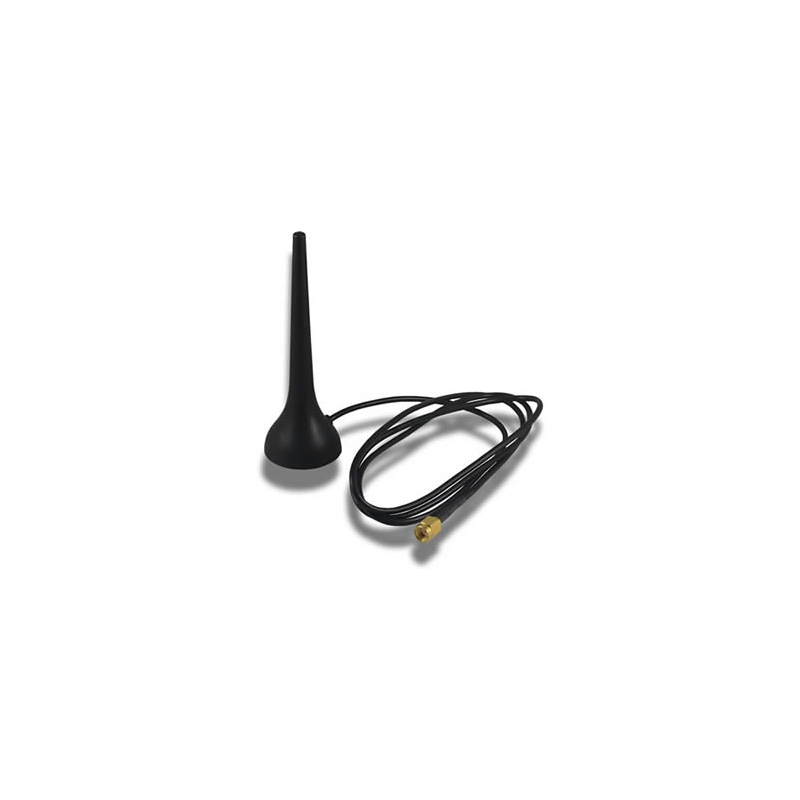

Desktop/Magnetic Antenna
10693
Wi-Fi RP-SMA (Reverse Polarity SMA) desktop/magnetic mount antenna to install in the ideal location for enhancing wireless reception.
More info
The desktop/magnetic mount antenna can be used with the following products:
The antenna can be used in place of the standard dipole antenna for situations where mechanical clearances or environmental obstructions prohibit the successful application of the standard antenna. The desktop/magnetic antenna allows convenient mounting on any flat surface. Its strong magnetic base even allows reliable vertical mounting on metallic surfaces.
Data sheet
| Frequency Range | 2.4 GHz to 2.5 GHz |
| Impedance | 50 Ohms |
| VSWR | 1.92 Max |
| Admitted Power | 1 W |
| Gain | 1.8 dBi |
| Connector | SMA plug reverse |
| Length | 1 meter |
