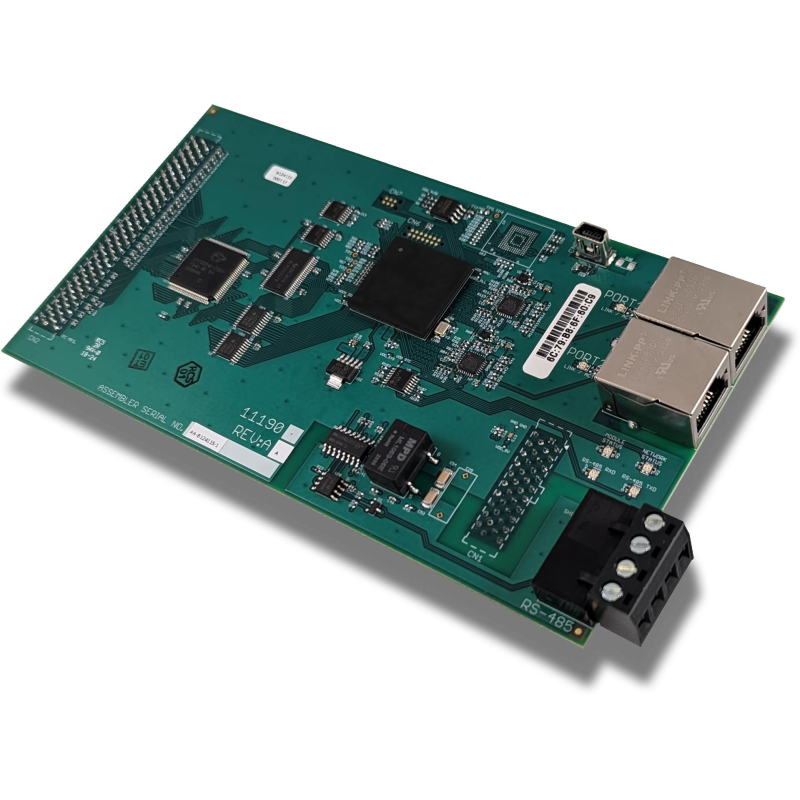

ASD-MVETHV2
Toshiba T300MVi, T300MV2 and MTX drive dual-port Ethernet RS-485 option card.
PROFINET IO (MRP), EtherNet/IP (DLR), IEC 61850, AB CSP, BACnet/IP, and Modbus/TCP Industrial Ethernet and Modbus RTU RS-485 connectivity for Toshiba T300MVi, T300MV2 and MTX drives.
Contact Toshiba for pricing and availability
More info
The ASD-MVETHV2 multiprotocol communication interface provides Ethernet and RS-485 network connectivity to the Toshiba T300MVi, T300MV2 and MTX series medium voltage adjustable speed drives (ASDs).
MRP (Media Redundancy Protocol) and DLR (Device Level Ring) allow for fast recovery and high availability. Dual RJ-45 ports with embedded IEEE 802.3 10BASE-T/100BASE-TX Ethernet switch supports star, daisy-chain, and redundant ring topologies. Shielded RJ-45 connectors accept standard CAT5-type 8-conductor unshielded twisted-pair (UTP) patch cables. MDI/MDI-X auto-crossover allows the use of any combination of straight-through and cross-over Ethernet cables. The Ethernet port supports multiple protocols simultaneously.
A configurable network timeout action can also be programmed that allows parameters to have their own unique "fail-safe" conditions in the event of a network interruption. The configuration studio provides discovery, network setting, configuration, real-time monitoring, and firmware updates.
Manuals Version Information Network Documents Firmware- The latest firmware is included in the latest ASDMV Configuration Studio
Associated Links
Data sheet
| Network Interface | Ethernet, RS-485 |
| Ethernet Ports | 2 |
| RS-485 Ports | 1 |
| USB Ports | 1 |
| LED Indicators | Yes |
| Ethernet Protocols | BACnet/IP Server, CSP Server, Device Level Ring (DLR) Node, EtherNet/IP Server, Media Redundancy Protocol (MRP) Client, Modbus RTU Slave, Modbus/TCP Server, PROFINET IO, IEC 61850 Server |
| Serial Protocols | Modbus RTU Slave |
| Power Supply | ASD |
| Field-Upgradeable | Yes |
| User Configuration Interface | ASDMV Configuration Studio via Ethernet or USB |
| Configuration File Upload/Download | Yes |
| Network Timeout Action | Yes |
| Mounting Options | Internal |
| Mounting Hardware Included | Yes |
| RoHS Compliant | Yes |
