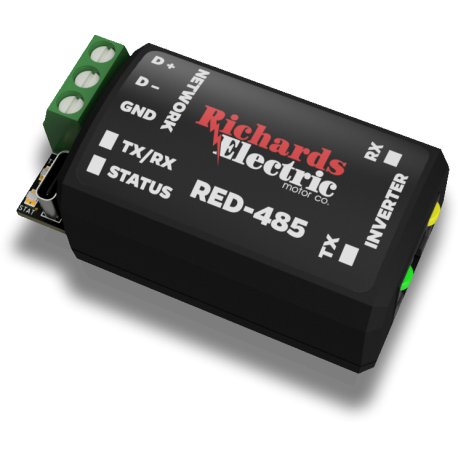

RED-485
Richards Electric RS-485 dongle for Toshiba inverters.
BACnet MS/TP, Modbus RTU, Metasys N2, and Siemens FLN interface for Toshiba AS3, S15, NC3, AS1, 9-Series, and 7-Series inverters.
Contact Richards Electric Motor Company for pricing and availability
More info

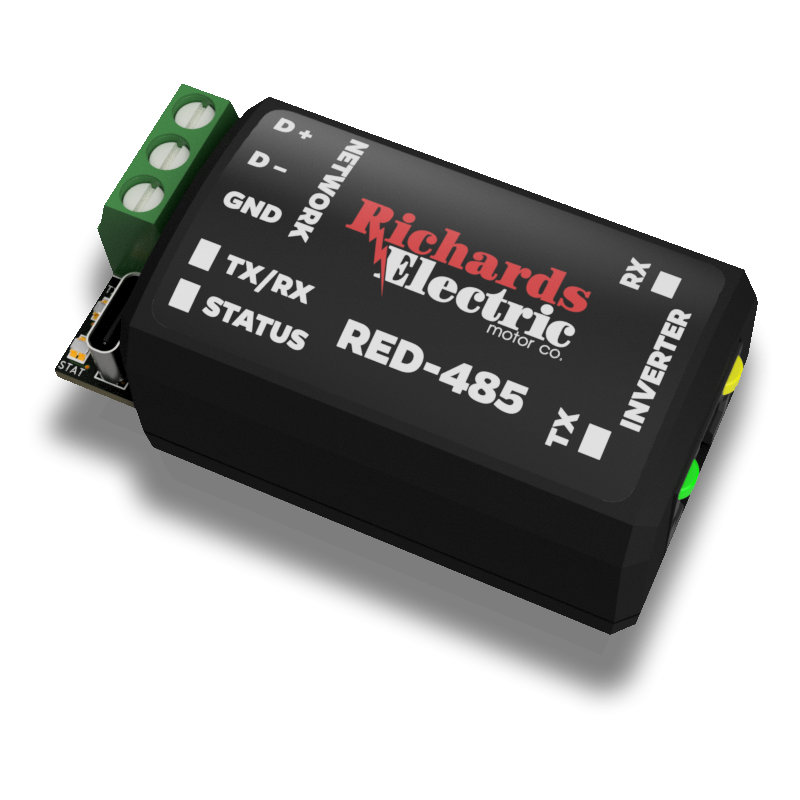

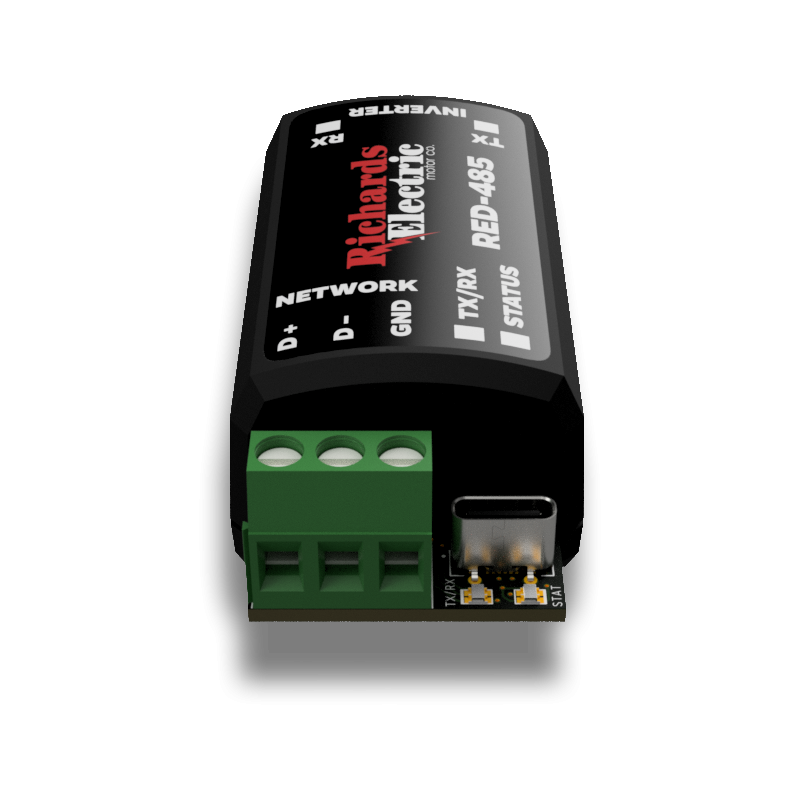

The RED-485 is a multiprotocol communication interface that allows information to be transferred seamlessly between a Toshiba inverter and several different RS-485-based fieldbus networks with minimal configuration requirements. The interface installs in-line between the automation system network and the inverter’s RS-485 port. The RED-485 presents a fixed, screw-style terminal block for connection to the RS-485 network. The interface is powered directly from the inverter, connecting via a standard Cat5 (or similar, e.g. Cat5e, Cat6, Cat6a, etc.) cable for both power and communication.
Manuals Protocol Documents Version Information ECAD Models SoftwareAssociated Links
Data sheet
| Network Interface | RS-485 (Fixed Terminal Block) |

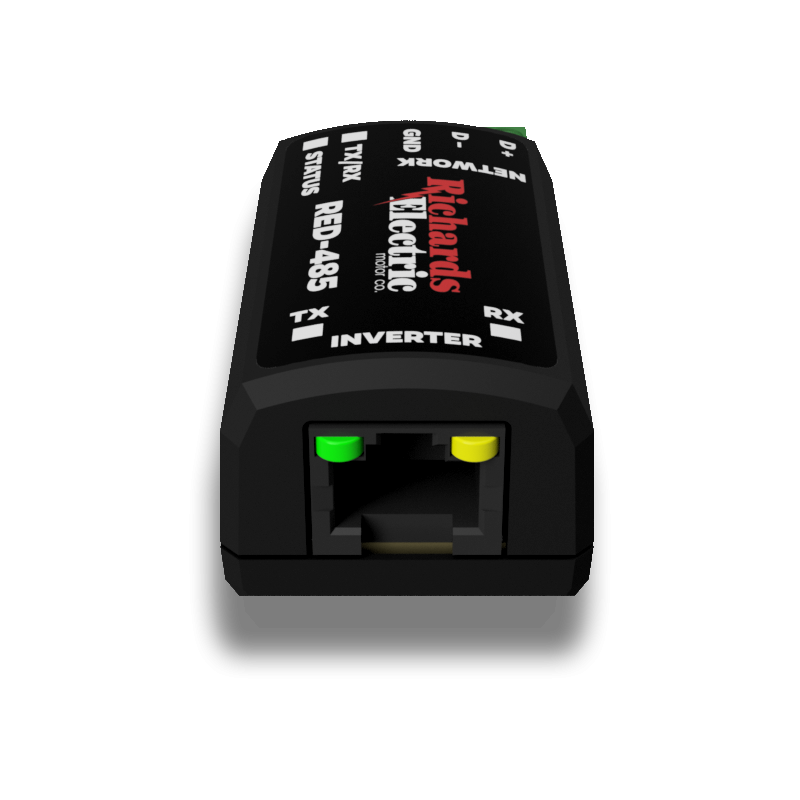

| Host Interface | RS-485 (RJ-45 Modular Jack) |
| RS-485 Ports | 2 |
| USB Ports | 1 |
| LED Indicators | Yes |
| Serial Protocols | BACnet MS/TP Server, Modbus RTU Slave, Metasys N2 Slave, Siemens FLN Slave, Toshiba ASD Master |
| Isolated | No |
| Power Supply | Inverter, USB |
| Field-Upgradeable | Yes |
| User Configuration Interface | Richards Electric NPU via USB |
| Mounting Options | In-Line |
| Length | 2.266" (57.556 mm) |
| Width | 1.250" (31.750 mm) |
| Height | 0.950" (24.130 mm) |
| RoHS Compliant | Yes |
